Software
Choose a selection or scroll down to view all
SHF Control Center (SCC)
SHF Optimizer
BERT Control Center (BCC)
SHF 600 Series Control
SHF Control Center (SCC)
The SHF Control Center software provides a variety of features to make the BPG and DAC work hand in hand as virtually one instrument.
To operate:
- All D, F and S-Series amplifiers*.
- All modules with starting with a “C” in the P/N (SHF Cxxx A/B/C)
- SHF 614 B/C DAC
- SHF 616 A/B/C PAM-MUX
- SHF 19120 A/B/C AWG
- SHF 12105 A and SHF 12106 A BPG
- SHF 78124 A
SHF Optimizer
- The SHF-Optimizer software is intended to operate the SHF C681 A and C683 A FIR-Filters.
- By using sophisticated DSP and optimization algorithms, the SHF-Optimizer does the tap calculation and enables the filter to compensate arbitrary frequency characteristics.
- Further, it performs a fast calculation of the output eye, the frequency response and the group delay of the signal chain with and without optimization.
BERT Control Center (BCC)
- An easy to use software package to provide a user friendly interface for changing the operating parameters plus a powerful measurement utility.
- To be used for all mainframe based bit error rate testers (BERT), optical transmitters, optical receivers, clock generation and distribution instruments.

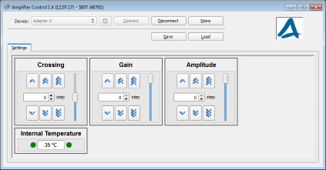

SHF 600 Series Control
SHF 600 Series Control
- To operate SHF 600 series DACs.
- Older versions of the SHF D-Series amplifiers (D836 A/B & D837 A/B) are also to be operated with this software.
* Older versions of the D-Series amplifiers (SHF D836 A/B & SHF D837 A/B) are to be operated with the “SHF 600 Series Control”.
